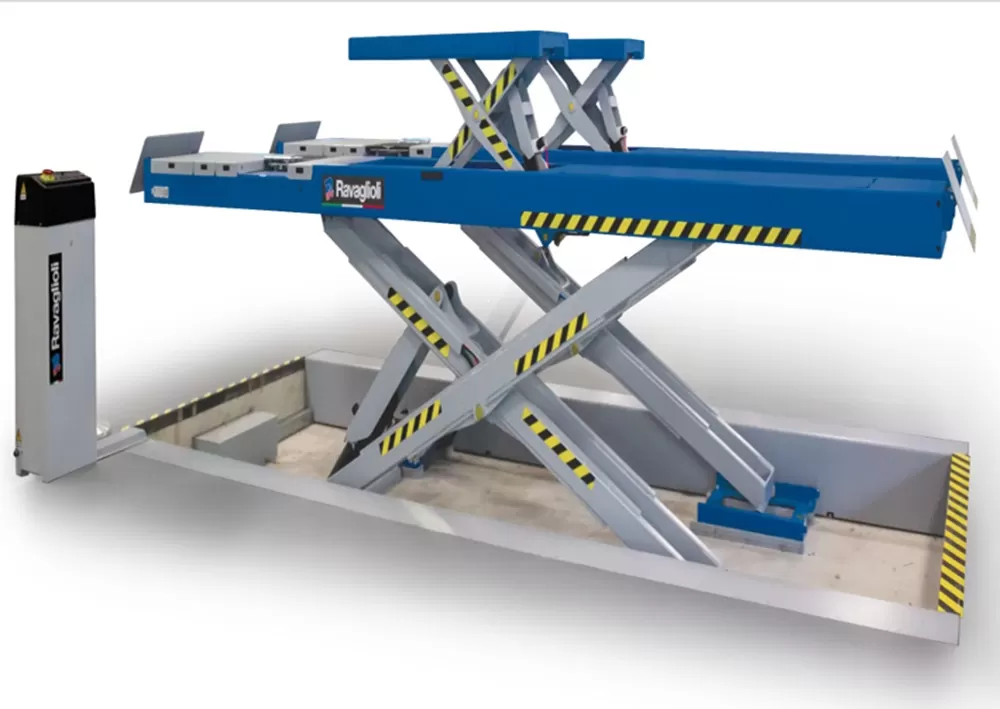

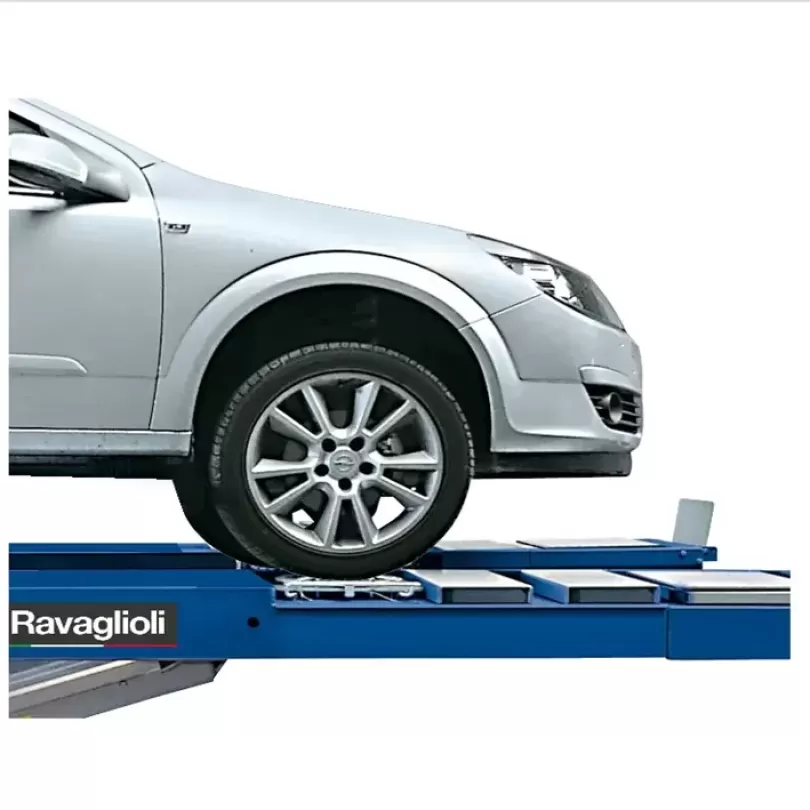

Cầu nâng cắt kéo kiểm tra góc đặt bánh xe 4.2 tấn, lắp chìm, có bàn nâng phụ
Model: RAV 640.2ISI
Specifications:
- Lifting load: 4200 Kg
- Lifting height: 2115 mm
- Power source: 380/50 V/Hz
- Motor capacity: 3.5 Kw
- Lift table length: 4600 mm

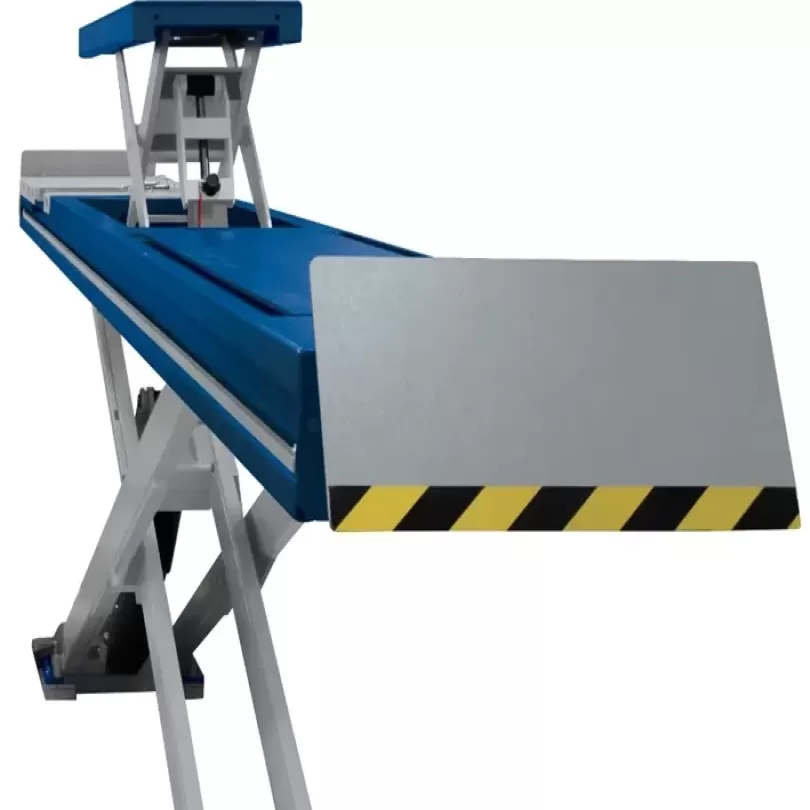

- Load capacity of auxiliary lift table (auxiliary jack): 3500 Kg
Price: Contact
Cầu nâng cắt kéo kiểm tra góc đặt bánh xe 4.2 tấn, lắp chìm, có bàn nâng phụ
Characteristic: - Safe mechanical locking mechanism combined with pneumatic locking release. - Self-lubricating bearing mechanism helps increase longevity. - Hydraulic balancing system ensures the lifting table surface is balanced even when the load distribution is uneven. - Speed control during the initial lifting phase and final lowering phase. - Warning when the bridge drops to a low level. - Lift table width: 615 mm - Lifting table width: 870 mm - Lifting height of auxiliary lift table: 500 mm - Length of auxiliary lift table: 1390-2100 mm - Blue RAL5015 (Not including 18 liters of TIGRIS brand M46 hydraulic oil)
Specifications:
- Lifting load: 4200 Kg
- Lifting height: 2115 mm
- Power source: 380/50 V/Hz
- Motor capacity: 3.5 Kw
- Lift table length: 4600 mm
- Load capacity of auxiliary lift table (auxiliary jack): 3500 Kg
