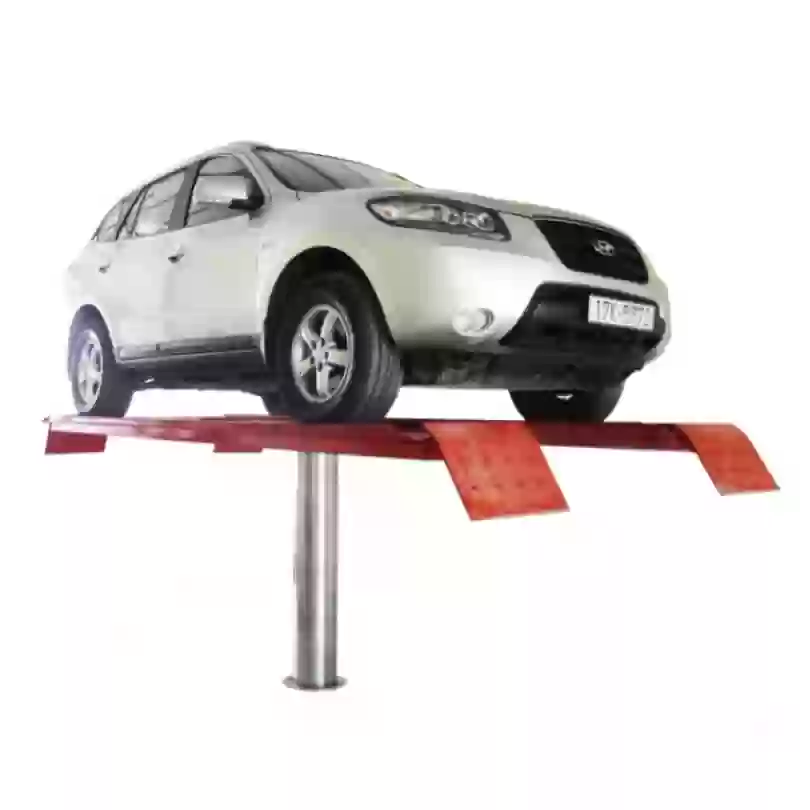

1-pillar lift specializes in washing Elgi cars

- Characteristic:

Specifications:
- Lifting load: 4000 Kg
- Lifting height: 1500 mm
- Piston diameter: 10.6' inches
- Lift table length: 4600 mm
Characteristic:
- Lifts all 4 wheels on 2 support floors, suitable for all types of passenger cars on the Vietnamese market
- Composite cylinder cover protects stainless cylinder body when installed underground (5 year warranty for cylinder cover)
- Cylinder body made of 2-stage stainless material: Stage 1 cylinder diameter 270mm, stage 2 cylinder diameter
360mm for increased rigidity and stability with a cylindrical body
- Genuine set of lock and synchronization valve accessories, safe and easy to use
- Do not use electricity
- Use air and hydraulics

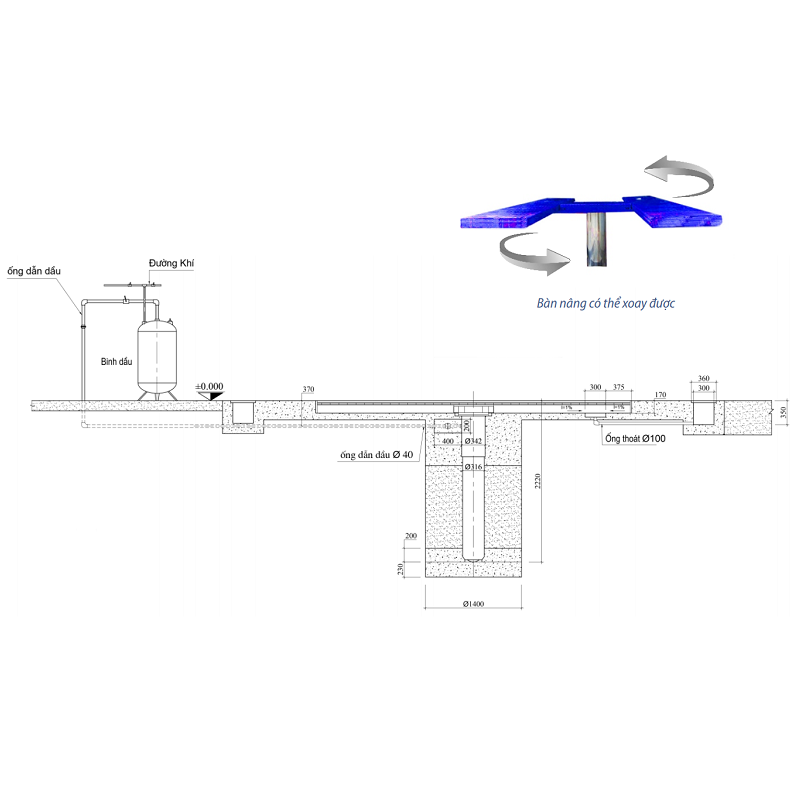

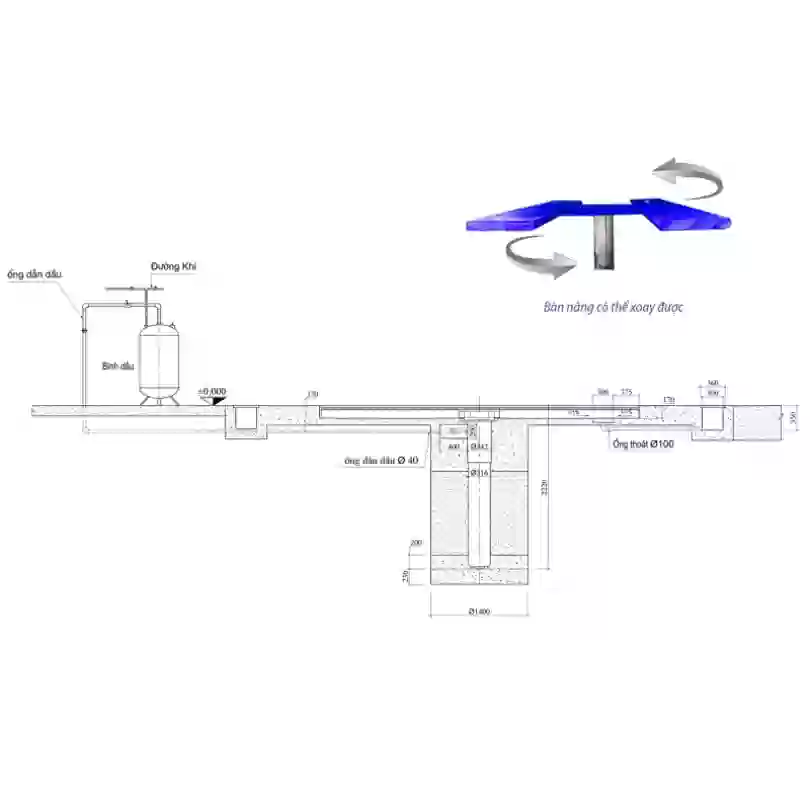

When installing the bridge, customers need to provide:
- Hydraulic oil: 210 liters
- Compressed air source from 9 -12Bar with air flow of 130 minutes.
- Air pipe from the compressor to the oil tank.
(Not including 200L of hydraulic oil M32, M46 - TIGRIS brand)
Standard accessories:
- 200L oil tank
- Oil pipeline
- Surface mounted scale
