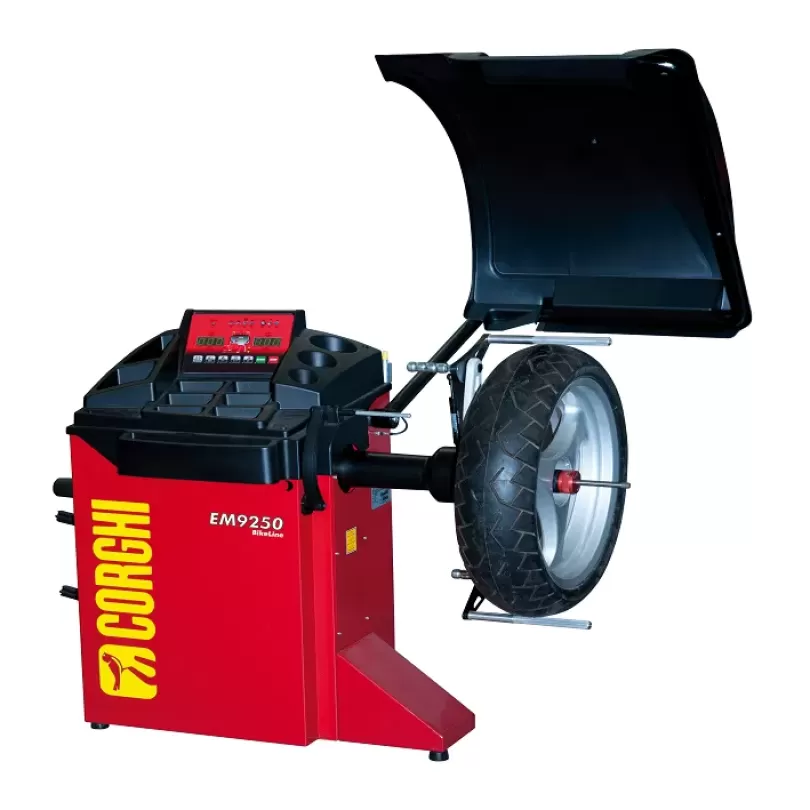

WHEEL BALANCER with manual wheel clamping system with automatic input of wheel diameter and distance

Model: EM9250 COMPACTLINE BASIC

Specifications: - Power source: 115-230 V - Motor power: 100 W - Largest tire diameter: 44 inches - Largest tire width: 23.6 inches - Wheel diameter: 28 inches - Maximum balancing speed: 90 - 130 rpm

Price: Contact

WHEEL BALANCER with manual wheel clamping system with automatic input of wheel diameter and distance

- EM 9250 COMPACTLINE with compact screen, dual display control panel allows both data entry and access to common functions.
- Large work surface, with many trays, easy to store pencils and equipment.
- The balance shaft has high precision, can withstand large loads, and requires no maintenance during use.
- Maximum unbalance value: 999 g
- Allowable imbalance: 1 g / 0.0353 oz
- Average measurement time is 7 seconds
- Shaft diameter 40 mm / 1.57"
- Fringe width setting range 1.5" ÷ 20"
- Measuring diameter range 10" ÷ 28"
- Maximum wheel/machine distance 275 mm/ 10.82"
- Maximum wheel weight (grounded): 75 kg
- Machine weight (without accessories): 79 kg
Accessories not included:
- width measuring sensor.
Standard accessories:
- 01 handheld width ruler;
- 04 centering cones with diameter Ø 42÷118.5 mm;
- 01 lead hammer code: 802227308
- 03 buffer rings
- 02 upside down bowls
- 01 wrench
- 01 set of standard code: 8-21100221

Specifications: - Power source: 115-230 V - Motor power: 100 W - Largest tire diameter: 44 inches - Largest tire width: 23.6 inches - Wheel diameter: 28 inches - Maximum balancing speed: 90 - 130 rpm
